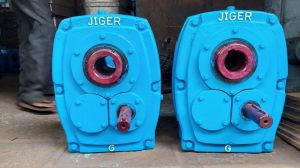

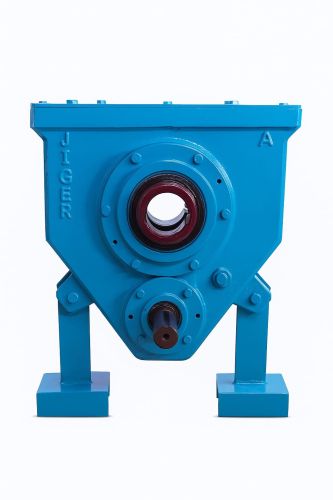

SMSR Type Belt Conveyor Gearbox

JIGER GEARS **belt conveyor gearbox** is a critical component used in belt conveyor systems to manage the speed and torque required to move the conveyor belt, carrying materials from one point to another in various industries such as mining, quarrying, stone crushing, and material handling.   ### Key Functions of a Belt Conveyor Gearbox:   1. **Speed Reduction**:    - The gearbox reduces the high input speed from the motor to a lower output speed that is suitable for the conveyor belt. This reduction is necessary to achieve the desired belt speed, which is typically lower than the motor’s speed.   2. **Torque Increase**:    - As the speed is reduced, the gearbox increases the torque, which is essential for driving the conveyor belt, especially when handling heavy materials.   3. **Direction Control**:    - Some gearboxes can reverse the direction of the conveyor belt when needed. This is particularly useful in applications where materials need to be transported back and forth.   ### Types of Belt Conveyor Gearboxes:   1. **Helical Gearbox**:    - **Description**: Known for its high efficiency and smooth operation, the helical gearbox is commonly used in belt conveyor systems. The angled teeth of the gears provide continuous contact, resulting in quiet and efficient power transmission.    - **Applications**: Suitable for medium to large conveyor systems, often used in industries like mining and bulk material handling.   2. **Worm Gearbox**:    - **Description**: A worm gearbox has a screw-like gear (worm) that meshes with a worm wheel. This type of gearbox offers high torque output and is often used in applications where space is limited due to its compact design.    - **Applications**: Ideal for conveyors with lower speed and high torque requirements, such as in stone crushing plants.   3. **Planetary Gearbox**:    - **Description**: Planetary gearboxes consist of a central sun gear, ring gear, and planet gears. This configuration offers high torque output in a compact design and is very efficient in power transmission.    - **Applications**: Used in heavy-duty conveyor systems that require high torque in a small footprint, like in mining operations.   4. **Bevel Helical Gearbox**:    - **Description**: Combines the benefits of bevel gears and helical gears, offering high torque, efficiency, and flexibility in installation. Bevel gears change the direction of the drive in a compact form, making them ideal for conveyors that need to change direction.    - **Applications**: Commonly used in large conveyors that require significant power transmission and directional changes.   5. **Shaft Mounted Speed Reducer (SMSR)**:    - **Description**: The SMSR gearbox is mounted directly on the conveyor shaft, simplifying installation and reducing alignment issues. It is a popular choice for belt conveyors due to its ease of maintenance.    - **Applications**: Widely used in quarrying and stone crushing plants where space is at a premium and ease of installation is important.   ### Features to Look for in a Conveyor Gearbox: - **Durability**: Gearboxes must be built from high-quality materials to withstand harsh operating conditions. - **Efficiency**: High-efficiency gearboxes reduce energy consumption and improve the overall performance of the conveyor system. - **Compact Design**: Especially important in space-constrained environments. - **Easy Maintenance**: Gearboxes with accessible components and clear maintenance procedures help minimize downtime. - **Torque Rating**: Ensure the gearbox can handle the torque requirements of the conveyor, especially under heavy loads.   ### Maintenance Tips: - **Lubrication**: Regular lubrication is critical to prevent wear and overheating. Use the recommended type and amount of lubricant. - **Inspection**: Periodically check for signs of wear or damage on gears, shafts, and seals.  - **Alignment**: Ensure the gearbox is correctly aligned with the motor and conveyor shaft to prevent excessive wear. - *
